Land Rover 9HP48 TCM Not Cloneable? Here’s What actually Worked

Most transmission control module jobs follow a predictable path. You read the original module, transfer the data to a replacement, install it, and the vehicle is back on the road.

This one didn’t.

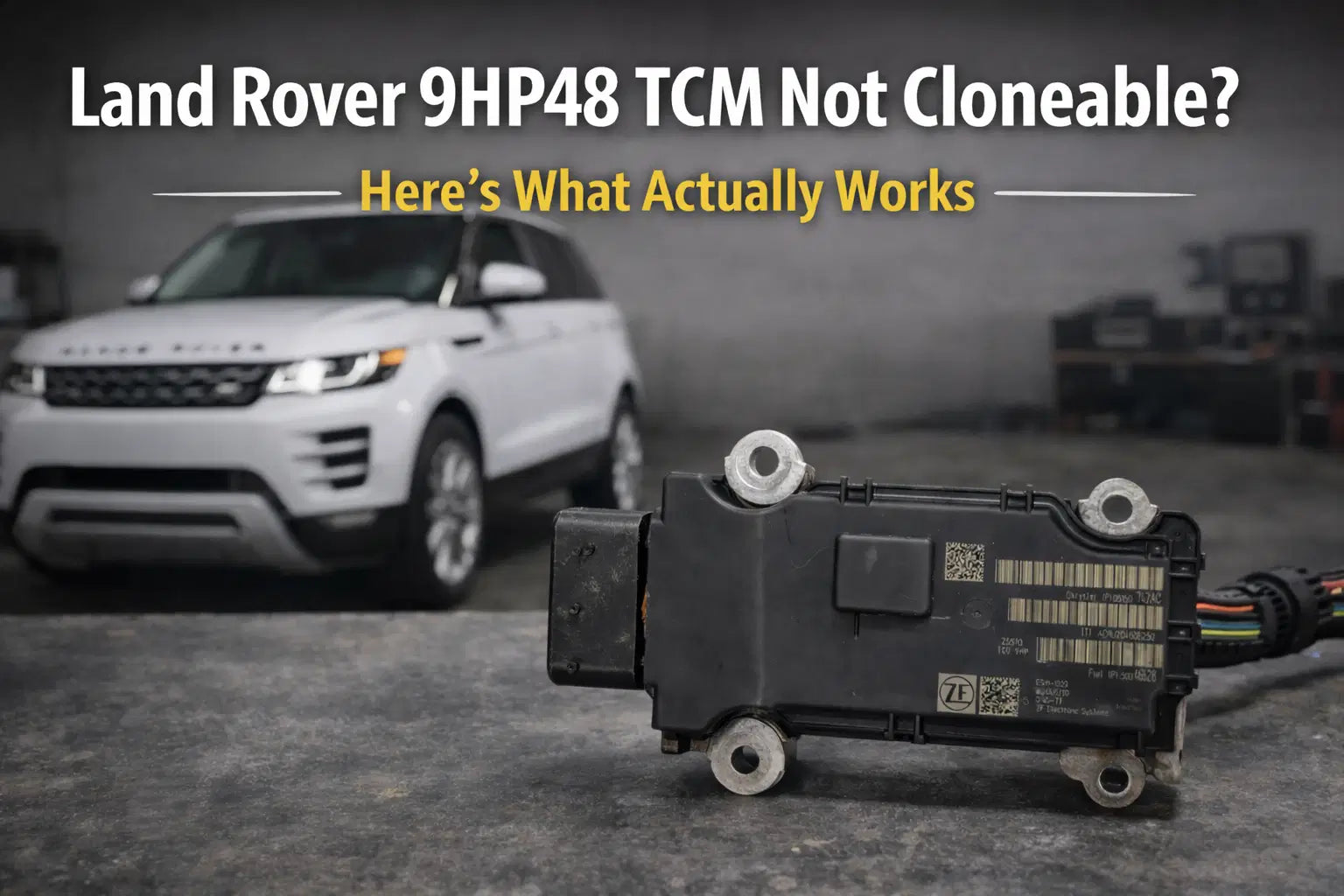

We received a ZF 9HP48 TCM from a Land Rover where the original module had failed. Normally, that wouldn’t be a major issue. The standard approach would be to clone the original data onto a donor unit and move forward. But in this case, that path was gone almost immediately.

On the bench, the original module was unstable. Reads would drop out, and when data could be pulled, it consistently returned checksum errors. That’s a clear sign the internal data is compromised. And once you can’t trust the data, cloning stops being a solution and starts becoming a way to transfer the same problem onto another module.

At that point, the job changes. It’s no longer a cloning job. It becomes a recovery problem.

Why the 9HP48 Causes Problems

The ZF 9HP48 is used across several Land Rover and Jaguar platforms, and while it’s common, it isn’t consistently supported across all tools. Even when access is available, results can vary depending on the controller’s condition and the software being used.

More importantly, the TCM stores more than just a VIN. It holds adaptation data, configuration values, and internal identity structures that need to match the rest of the vehicle. When a used donor module is installed, all of that data still belongs to another car.

That’s where most repairs get stuck. The module powers up, communication is there, but the vehicle refuses to accept it.

Why a VIN Match Isn’t Enough

The first logical step was to modify the donor EEPROM and match the VIN to the vehicle. It’s a common approach and, on simpler systems, sometimes enough.

In this case, it wasn’t.

The module still failed during configuration. The vehicle detected inconsistencies and refused to complete initialization. That’s because the VIN is only one part of the equation. The rest of the EEPROM still contained donor-specific adaptation and configuration data that didn’t align with the vehicle.

Changing the VIN fixed the surface. The underlying structure was still wrong.

What Actually Worked

The solution ended up being something in between a full reset and a simple edit.

Instead of wiping the EEPROM completely or just changing the VIN, the working approach was a targeted reset. Specific identity and adaptation blocks were cleared, while the core structure needed for the module to function was left intact.

That balance turned out to be the key.

Too much removed, and the module risks not booting or communicating properly. Too little changed, and the vehicle rejects it during configuration. The successful file landed in the middle, removing just enough of the donor’s identity for the vehicle to take ownership of the module.

Once installed, the TCM initialized correctly, completed configuration, and the transmission operated as expected.

Where These Jobs Usually Go Wrong

By the time cases like this show up, they’ve often already been attempted once or twice.

The original module is unreadable. A donor has been installed. Programming has been attempted, and it didn’t work. At that point, the job is stuck somewhere between mechanical and electronic, and replacing more parts doesn’t solve it.

What’s missing is not hardware. It’s the right data strategy.

The Bigger Takeaway

Not every failed module can be cloned. Checksum errors are usually a sign that the original data is no longer usable, and once that happens, the approach has to change.

A VIN edit alone often isn’t enough on newer platforms. At the same time, a full wipe can go too far. The solution is understanding what to remove, what to keep, and how to present the module to the vehicle as something it can initialize.

That’s where experience—and sometimes the ability to look at a problem from more than one angle—comes into play.

Final Result

With the correct EEPROM strategy in place, the module configured successfully, the transmission shifted normally, and the vehicle was returned to service without requiring a full replacement.

If You’re Stuck on One of These

If you’re dealing with a 9HP48 TCM that won’t clone, won’t program, or keeps failing during configuration, you’re not the only one. These cases show up more often than most shops expect.

And in many cases, there’s still a way to finish the job.
